BT30-ER16 - BT30 ER16 Collet Chuck

JIS B 6339 (MAS403 BT) AD&B Balanced G6.3

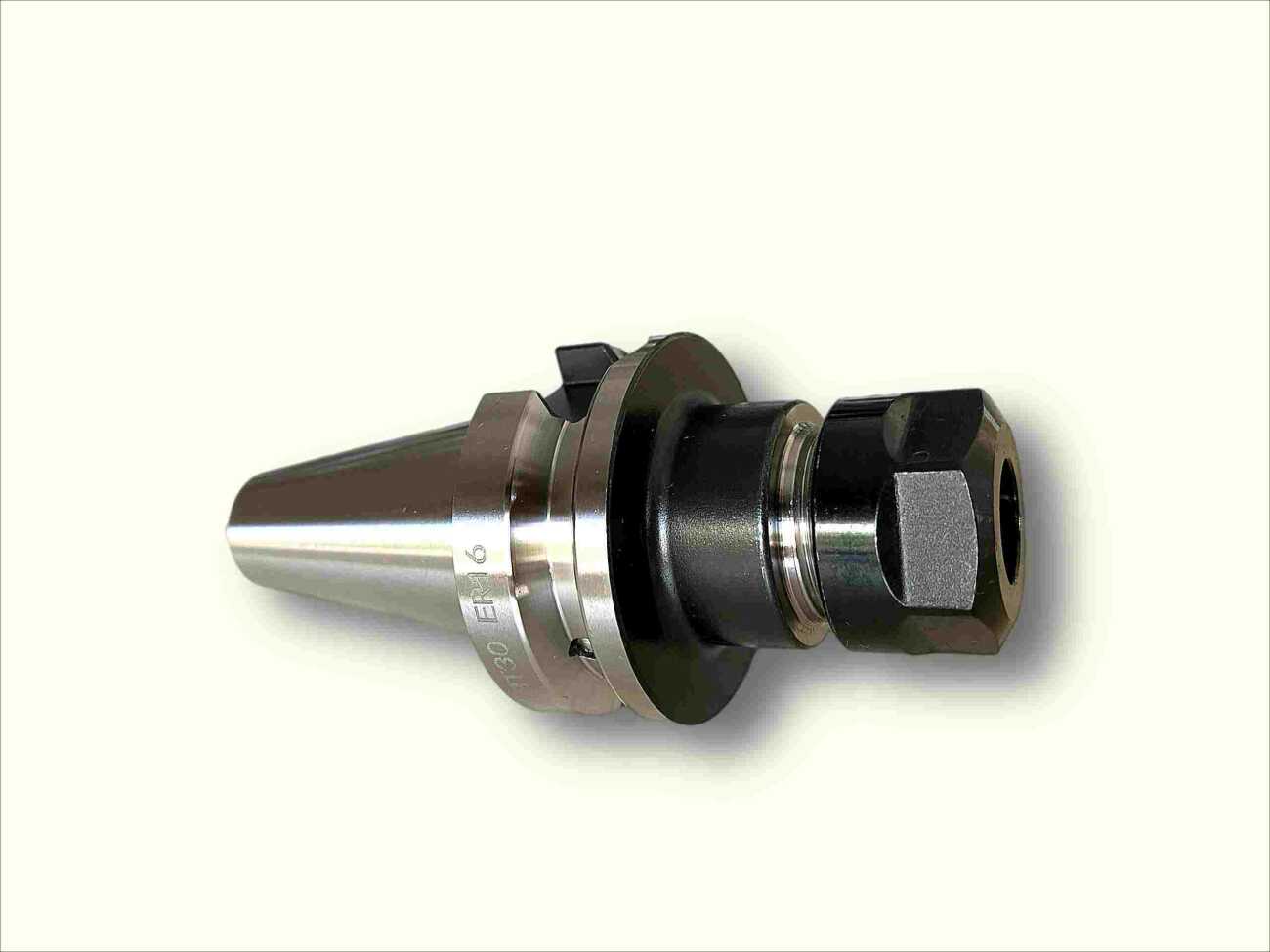

BT30 ER16 Collet Chuck

• Collet Type and Ø Clamping Rance: ER16  Ø1-12.5mm
• Coolant Type: AD&B
• Balance: G6.3

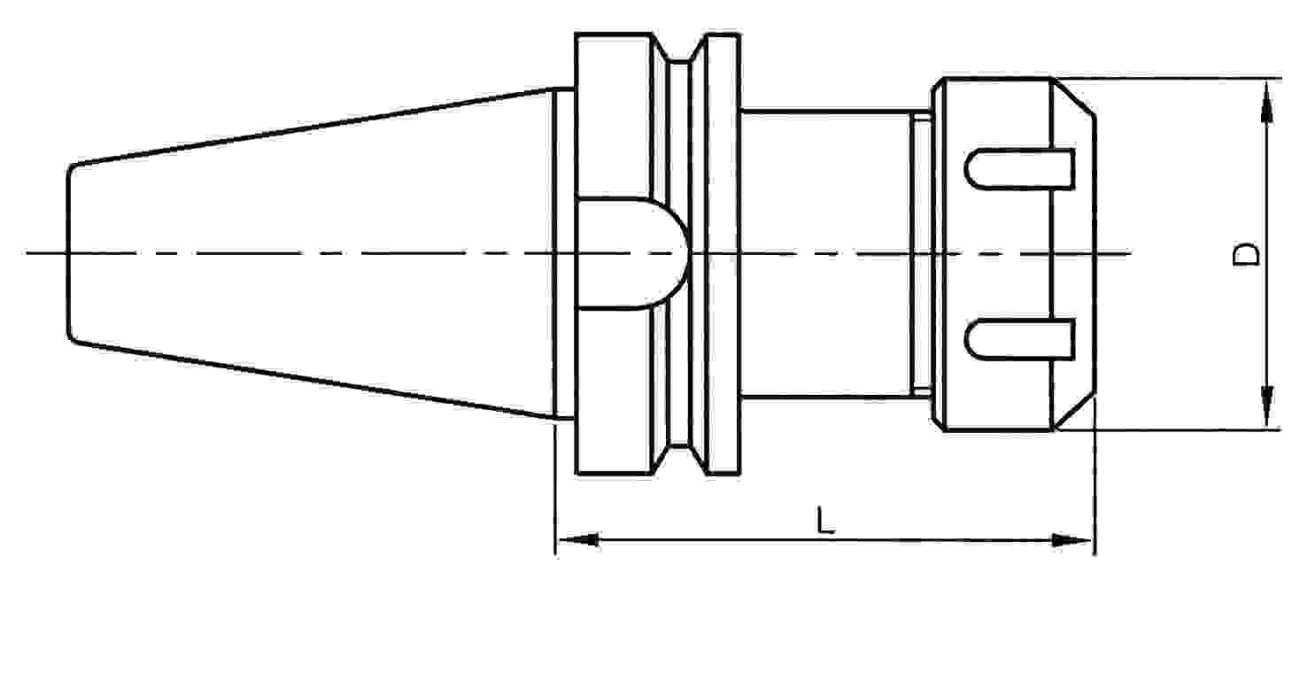

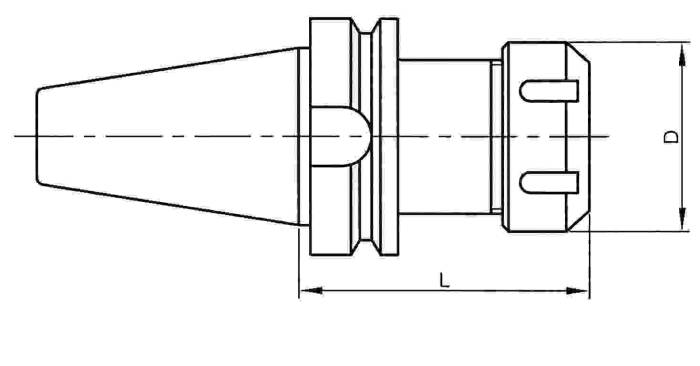

• D: 28mm
• L: 60mm
• Locknut Type and Code: ER16 Hexagon - NER16H
• Spanner Type and Code: SPER16 Hexagon - SPER16H (Sold Separately)
• Pull Stud: M12 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan

Go to Catalogue Page ;   (107 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
