JIS B 6339 (MAS403 BT) AD&B Balanced G6.3

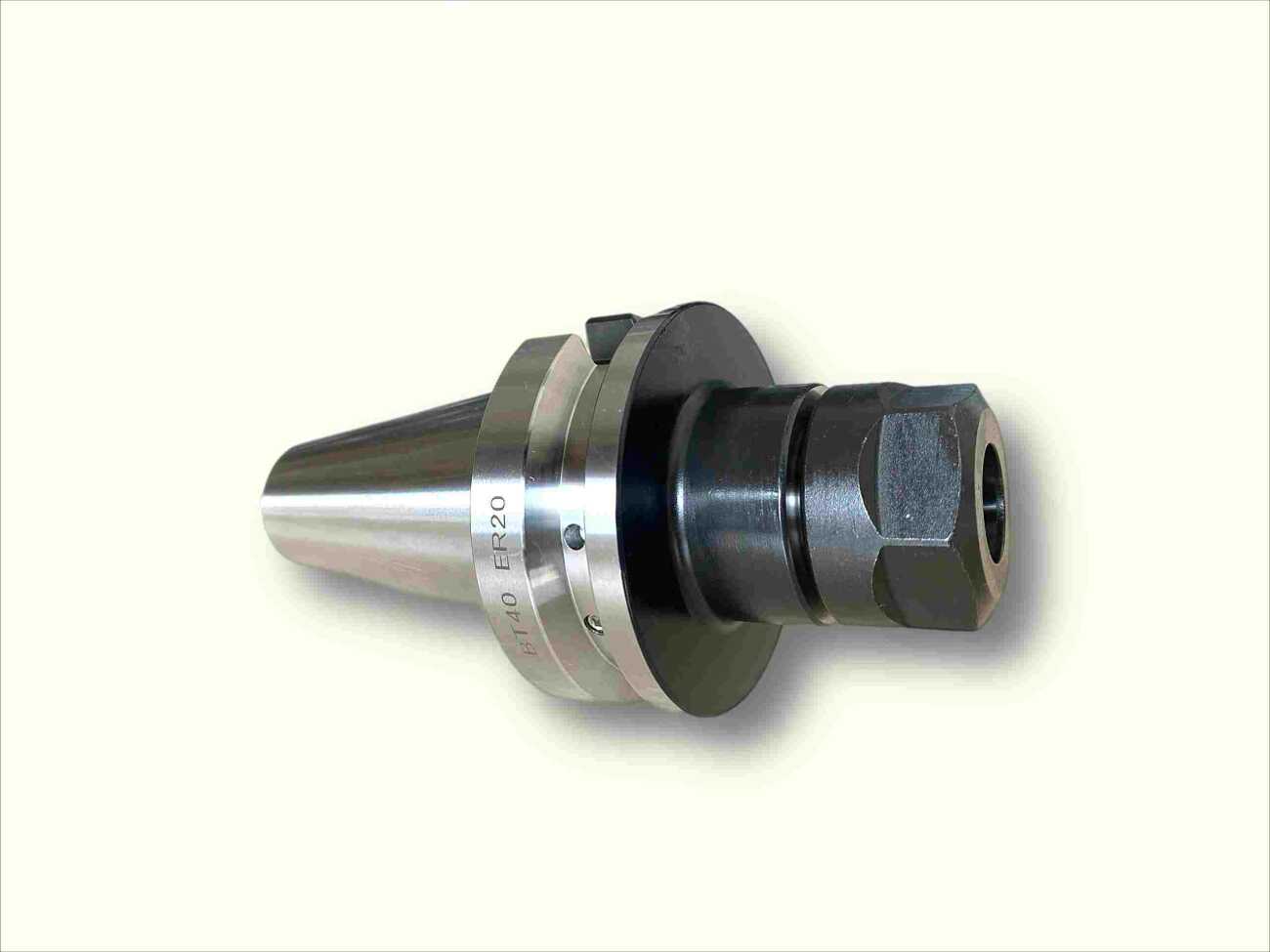

BT40 ER20 Collet Chuck
- Collet Type and Ø Clamping Rance: ER20 Ø2-16mm
- Coolant Type: AD&B
- Balance: G6.3

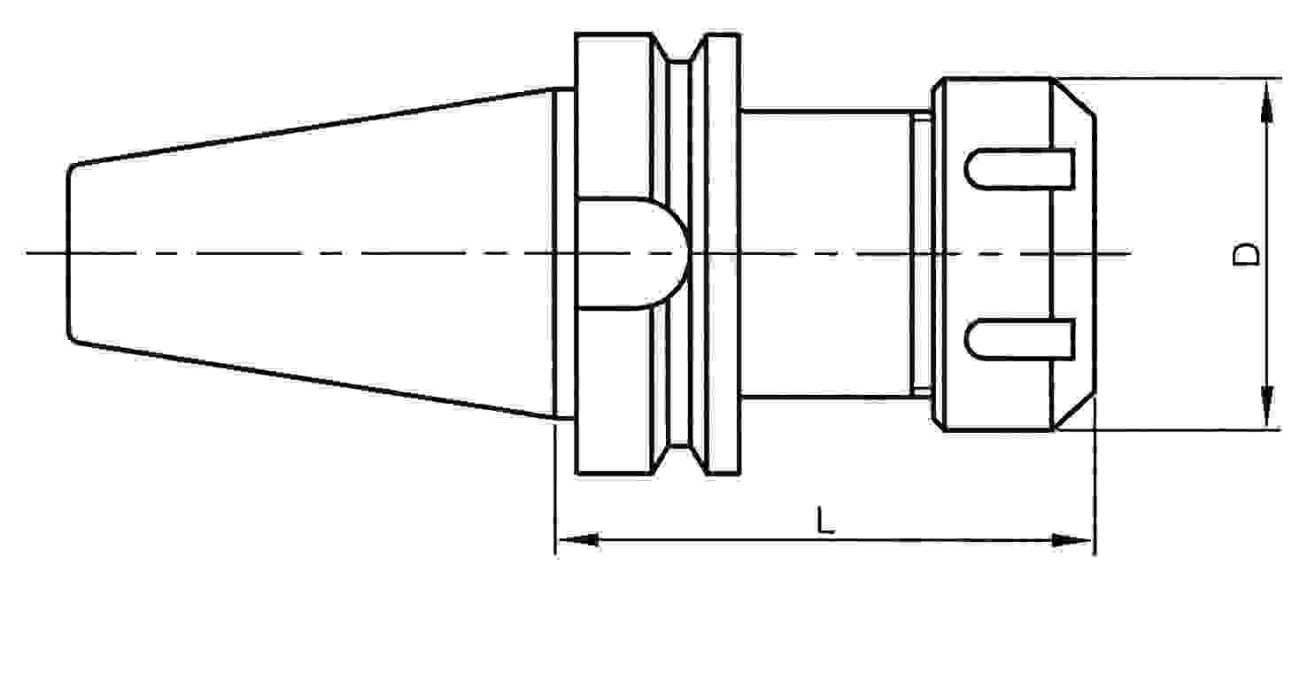

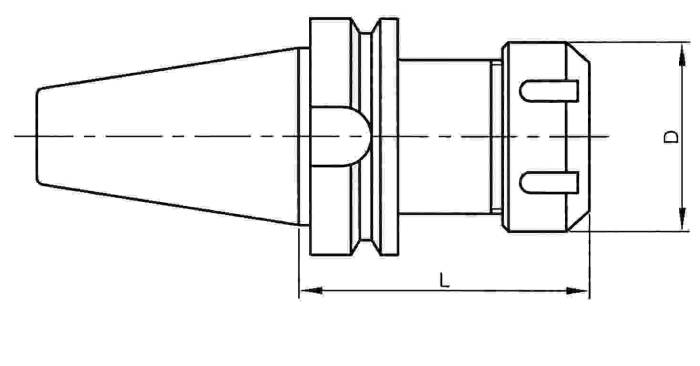

- D: 34mm
- L: 70mm
- Locknut Type and Code: ER20 Standart - NER20S
- Spanner Type and Code: SPER20 Standart - SPER20S (Sold Separately)
- Pull Stud: M16 (Sold Separately)
- Adjustable Stop Screw Inside The Chuck
- Pack of: 1 Pce
- G2.5 Balanced Available on Request
- Brand: Gürkan
Go to Catalogue Page ; (107 KB)
Gurkan General Tooling Catalogue 2023; (16.72 MB)
