BT40ER40 - BT40 ER40 Collet Chuck

JIS B 6339 (MAS403 BT) AD&B Balanced G6.3

BT40 ER40 Collet Chuck

• Collet Type and Ø Clamping Rance: ER40  Ø1-32mm
• Coolant Type: AD&B
• Balance: G6.3

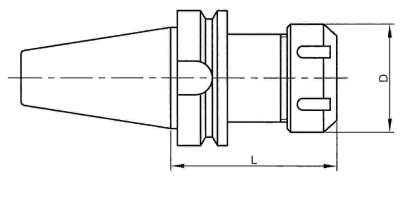

• D: 63mm
• L: 70mm
• Locknut Type and Code: ER40 Standart - NER40S
• Spanner Type and Code: SPER40 Standart - SPER40S (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
