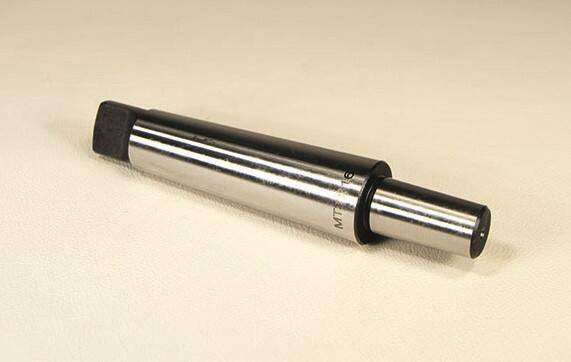

MT5B24 - MT5 B24 MORSE TAPER DRILL CHUCK ARBOR

MT5 B24 MORSE TAPER DRILL CHUCK ARBOR

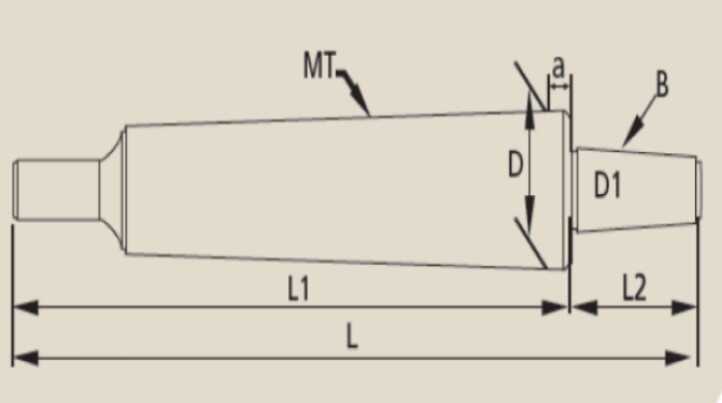

• Shank Taper: MT5
• Front Taper: B24
• L: 214mm
• L1: 156mm
• L2: 58mm
• D: 44,399mm
• D1: 23,825mm
• Pack of: 1 Pce
• Brand: Gürkan
