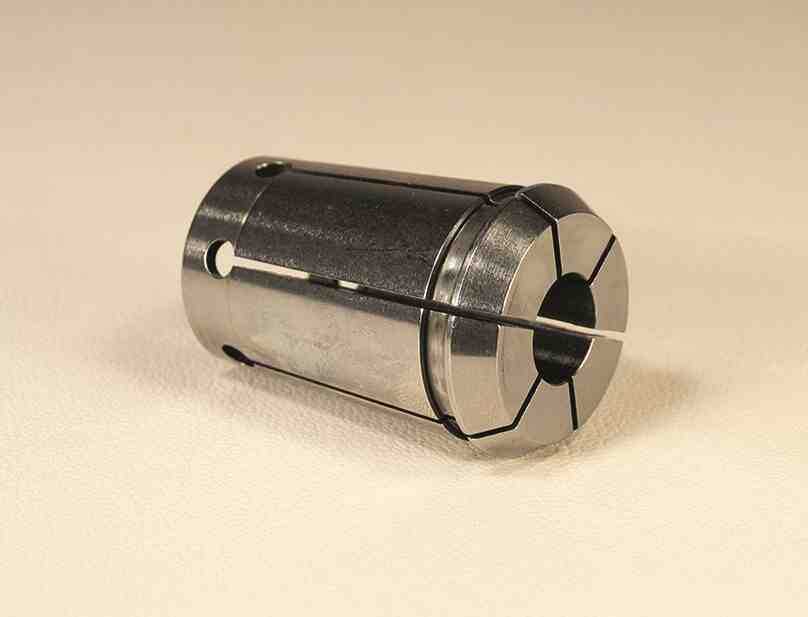

OZ16 COLLET DIN 6388 B-16 / ISO 10897-B* 415E 10MM
Barcode : OZ161002
Product Code : OZ161002 - DIN6388B-16 PENS 10MM
508.48 TL + VAT
OZ16 Collet Ø10mm Class 2
- Clamping Dia: Ø10.0 - 9.5mm
- Brand: Gürkan
- Accuracy: 0.020mm
- D: 25.5mm
- L: 40mm
- α: 2°51'45"
- β: 30°
- Pack Of: 1 Adet
- Form B OZ collets can clamp up to 0.5mm down from the its diameter, they are sloted from both sides
Go to Catalogue Page; (125 KB)
Gurkan General Tooling Catalogue 2023; (16.72 MB)
