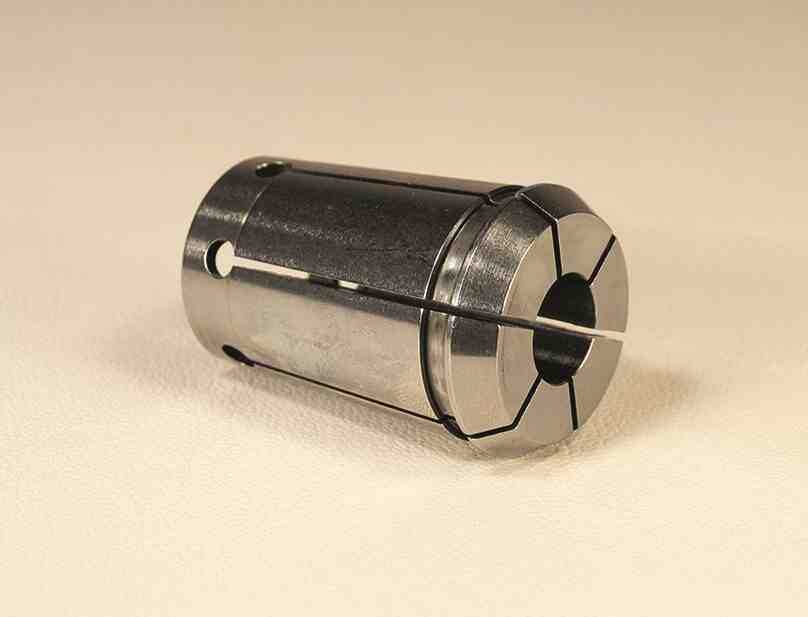

OZ16 COLLET DIN 6388 B-16 / ISO 10897-B* 415E 1MM

OZ16 Collet Ø1mm Class 2

• Clamping Dia: Ø1.0 - 0.5mm
• Brand: Gürkan
• Accuracy: 0.015mm
• D: 25.5mm
• L: 40mm
• α: 2°51'45"
• β: 30°
• Pack Of: 1 Adet
• Form B OZ collets can clamp up to 0.5mm down from the its diameter, they are sloted from both sides

Go to Catalogue Page;   (125 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
