OZ25 COLLET DIN 6388 B-25 / ISO 10897-B 462E 1/2
Barcode : OZ2512701
Product Code : OZ2512701 - DIN 6388B-25 PENS 1/2 CL1
666.61 TL + VAT

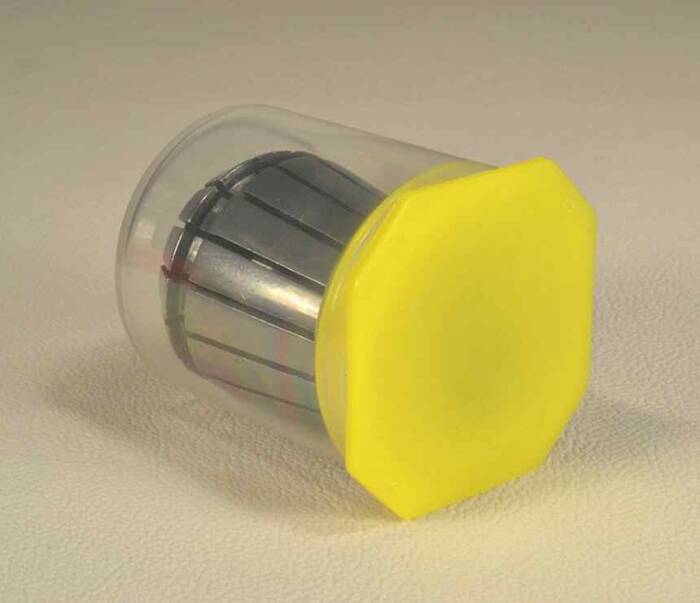

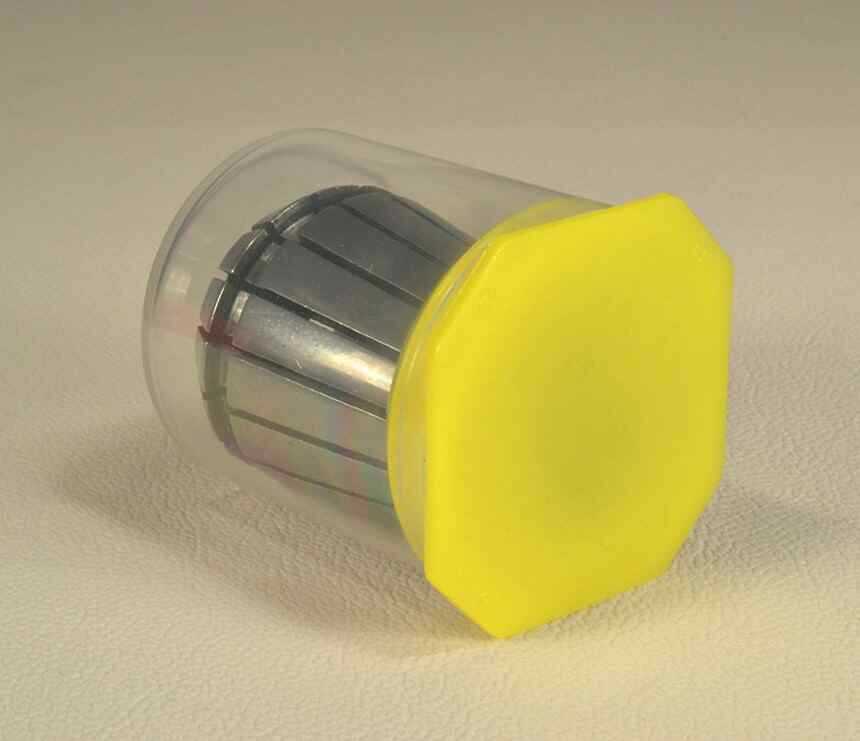

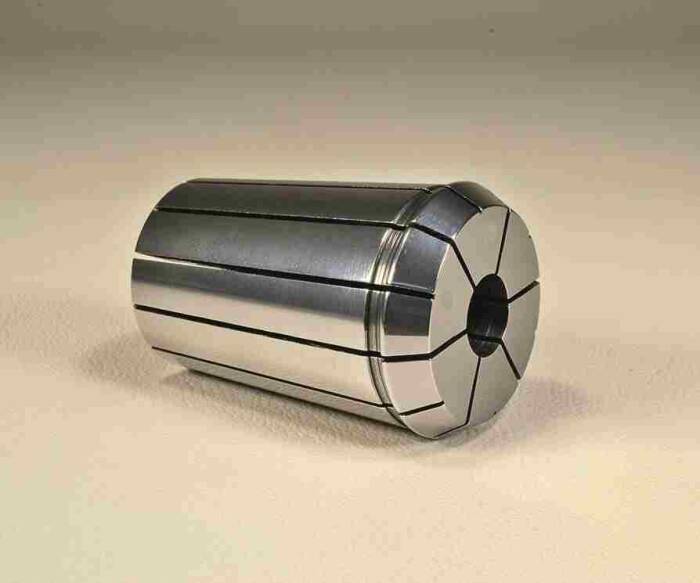

OZ25 Inch Sized Collet 1/2 Class 1
- Clamping Dia: 1/2"(12.70)
- Brand: Gürkan
- Accuracy: 0.015mm
- D: 35.05mm
- L: 52.0mm
- α: 2°51'45"
- β: 30°
- Pack Of: 1 Pce
- Form B OZ collets can clamp up to 0.5mm down from the its diameter, they are sloted from both sides
Go to Catalogue Page; (121 KB)
OZ25 Inch Sized Collet 1/4 Class 1
- Clamping Dia: 1/4"(6.35)
- Brand: Gürkan
- Accuracy: 0.015mm
- D: 35.05mm
- L: 52.0mm
- α: 2°51'45"
- β: 30°
- Pack Of: 1 Adet
- Form B OZ collets can clamp up to 0.5mm down from the its diameter, they are sloted from both sides
Go to Catalogue Page; (121 KB)
Gurkan General Tooling Catalogue 2023; (16.72 MB)
