OZ25 COLLET DIN 6388 B-25 / ISO 10897-B 462E 26MM CL1
Barcode : OZ252601
Product Code : OZ252601 - DIN6388B-25 PENS 26MM CL1
1,073.45 TL + VAT

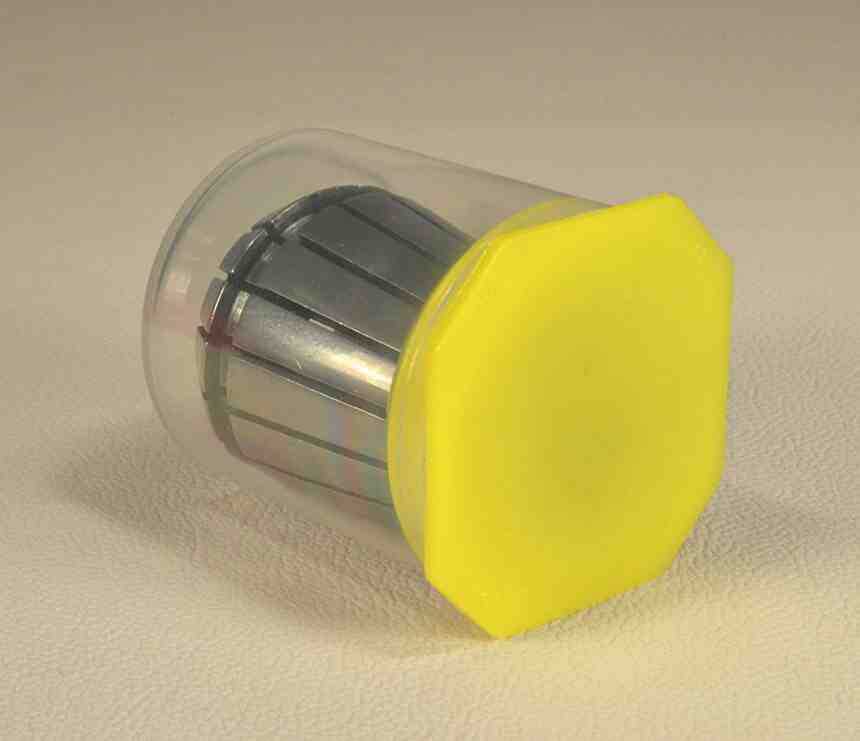

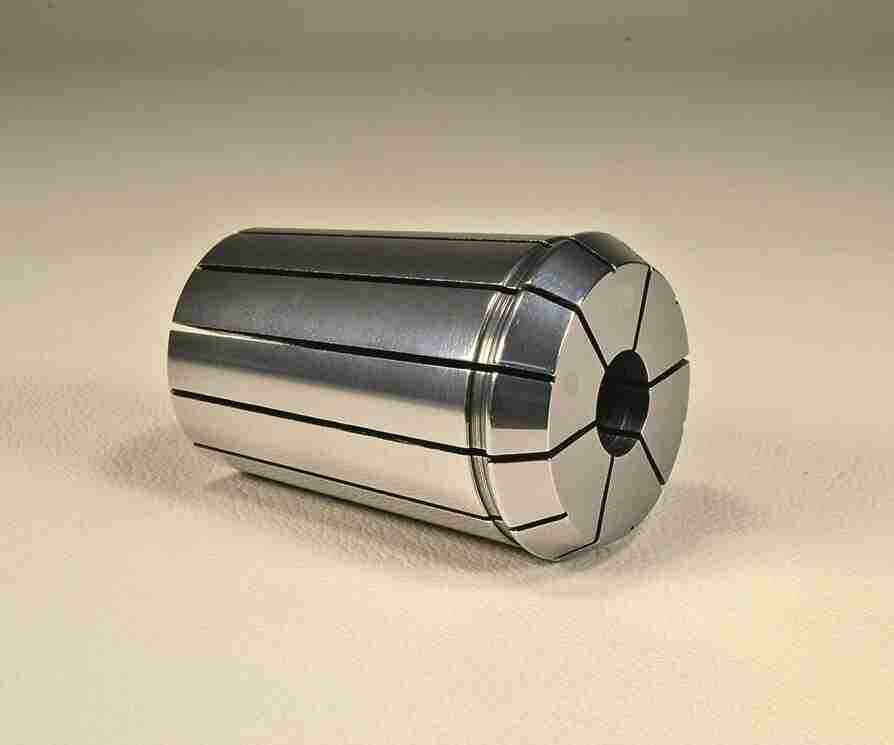

OZ25 COLLET Ø26mm Class 1
- Clamping Dia: Ø26.0- 25.8m
- Brand: Gürkan
- Accuracy: 0.015mm
- D: 35.05mm
- L: 52.0mm
- α: 2°51'45"
- β: 30°
- Pack Of: 1 Adet
- Form B OZ collets can clamp up to 0.5mm down from the its diameter, they are sloted from both sides..
