BT30ER32100 - BT30 ER32-100 Collet Chuck

JIS B 6339 (MAS403 BT) AD&B Balanced G6.3

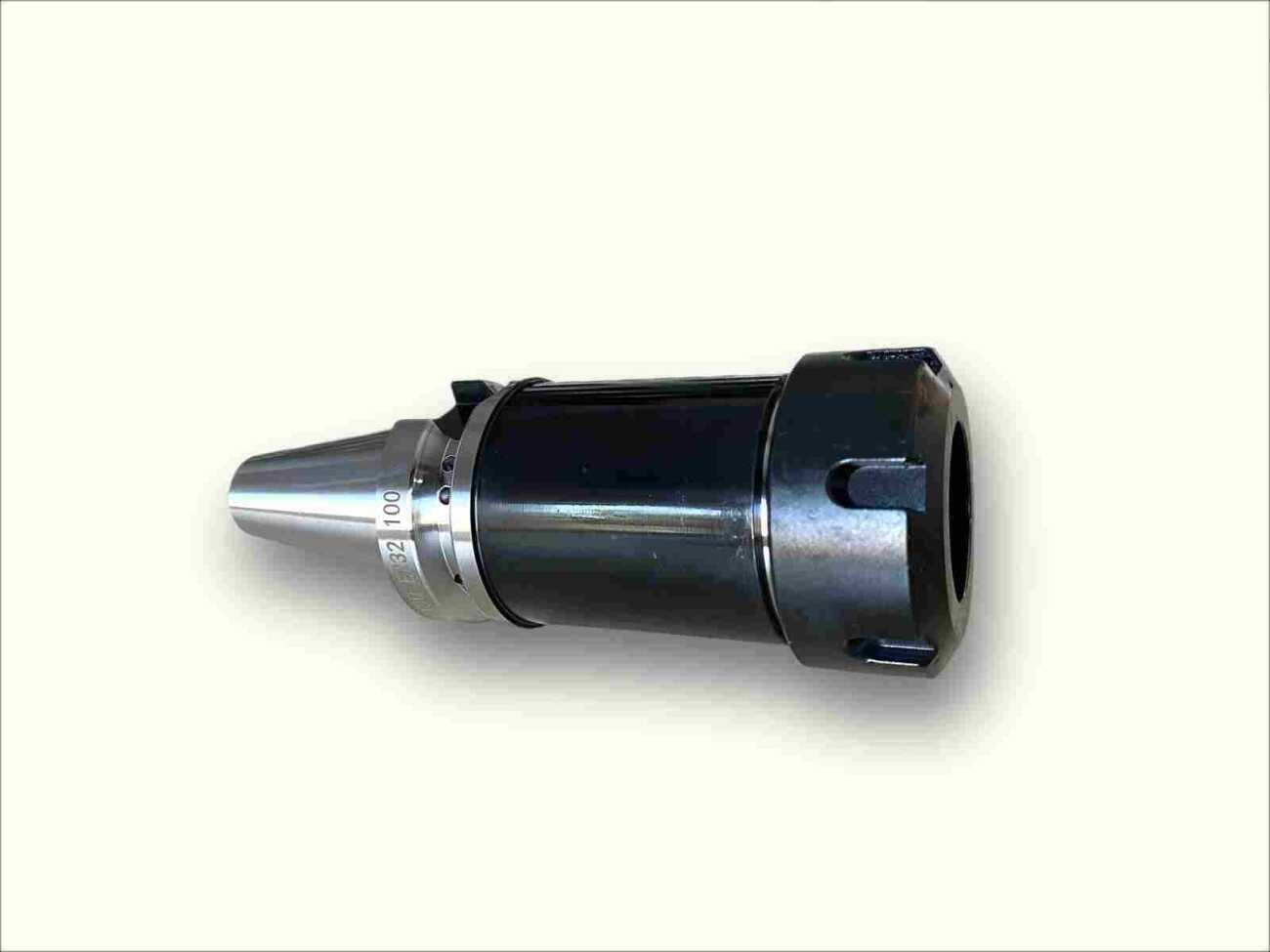

BT30 ER32 100 Collet Chuck

• Collet Type and Ø Clamping Rance: ER32 100  Ø1-25mm
• Coolant Type: AD&B
• Balance: G6.3

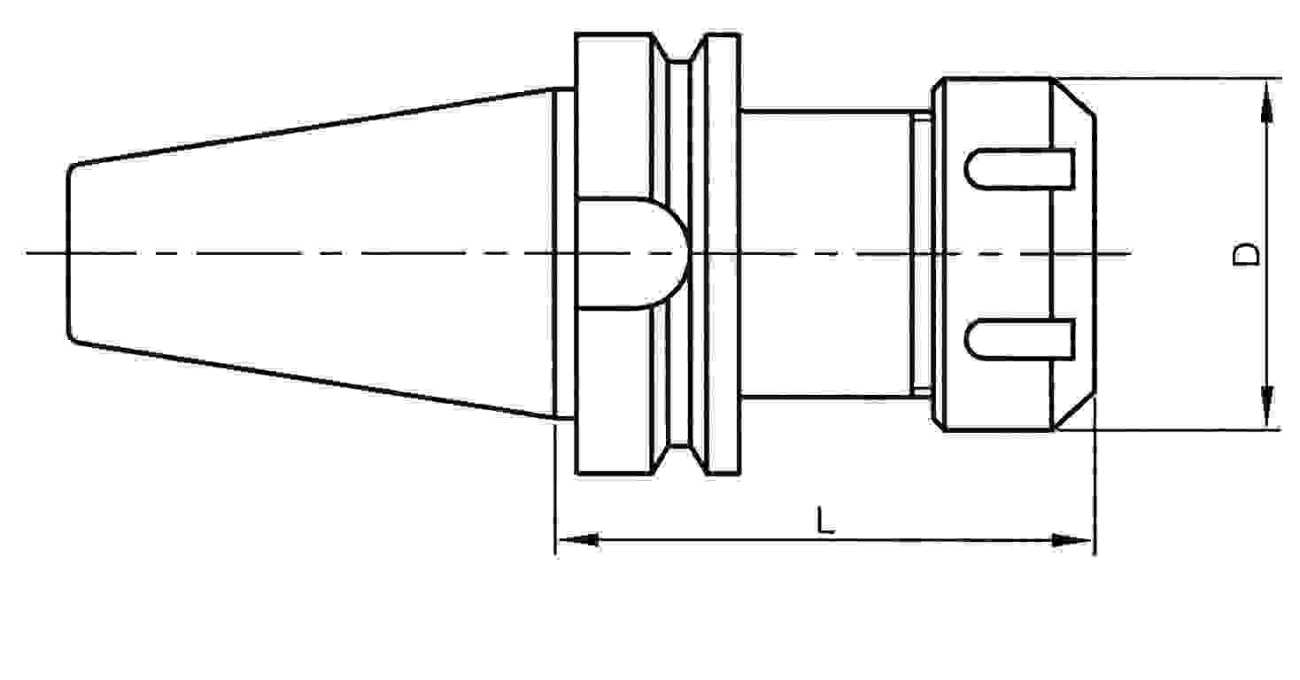

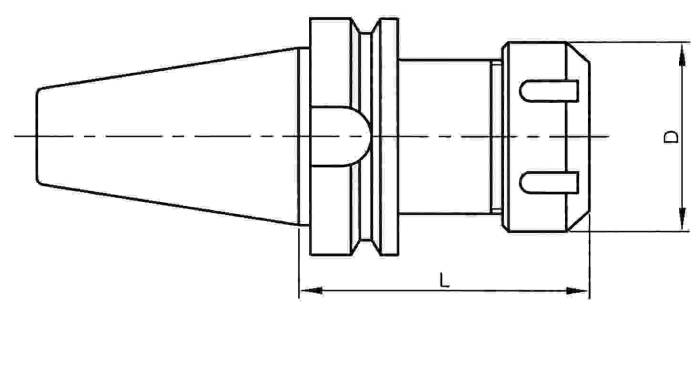

• D: 50mm
• L: 100mm
• Locknut Type and Code: ER32 Standart - NER32S
• Spanner Type and Code: SPER32 Standart - SPER32S (Sold Separately)
• Pull Stud: M12 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
