BTC40ER16 - BTC40 ER16 DOUBLE CONTACT COLLET CHUCK

JIS B 6339 (MAS403 BTC) AD&B Balanced G2.5

FACE & TAPER CONTACT TOOLHOLDERS

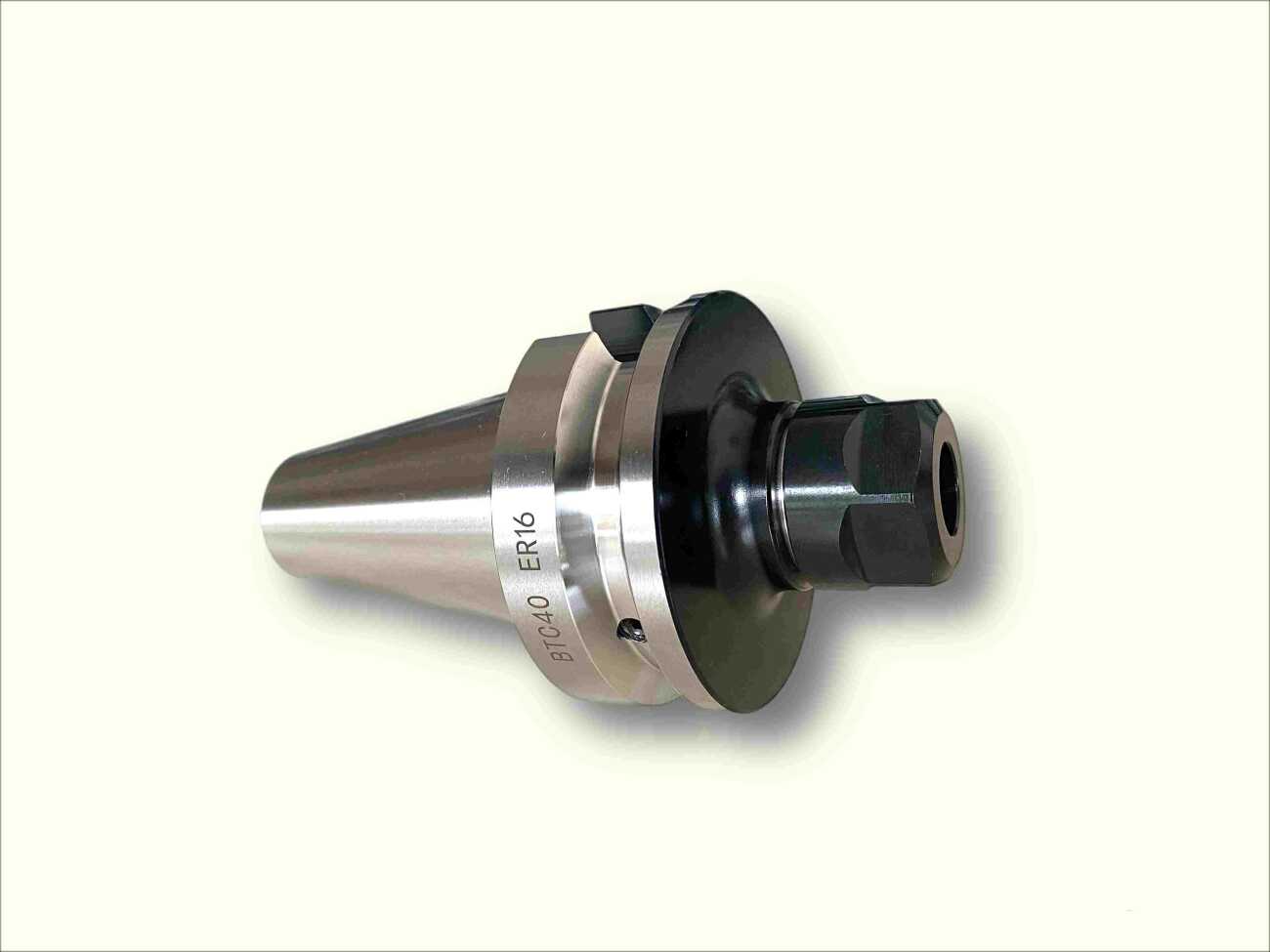

BTC40 ER16 Collet Chuck

• Collet Type and Ø Clamping Rance: ER16  Ø1-12mm
• Coolant Type: AD&B
• Balance: G2.5

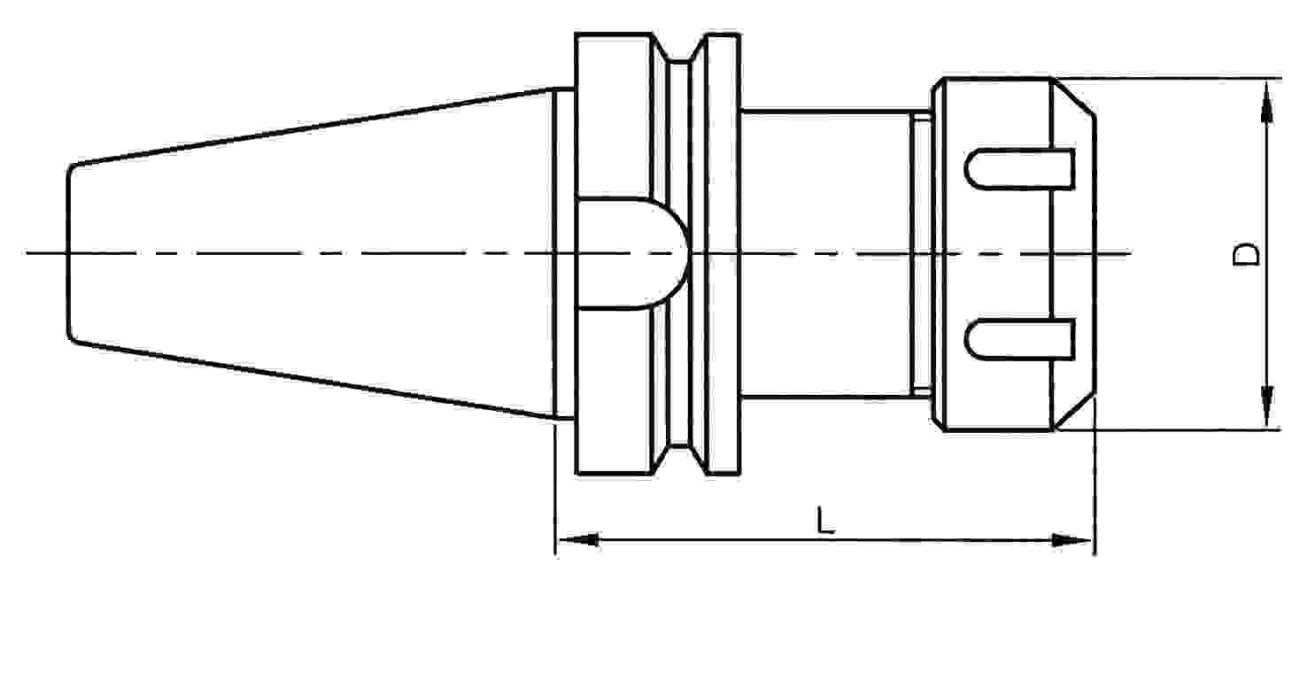

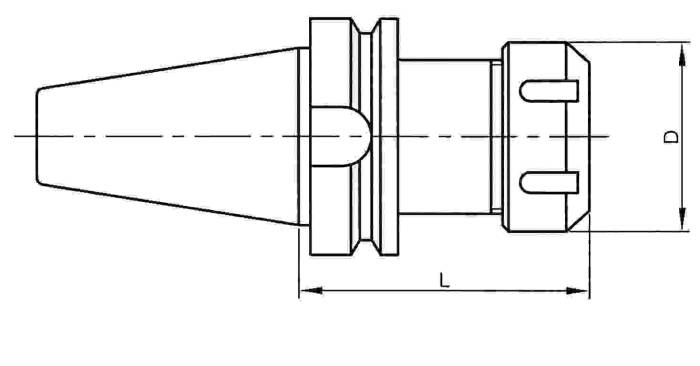

• D: 28mm
• L: 60mm
• Locknut Type and Code: ER16 Hexagon - NER16H
• Spanner Type and Code: SPER16 Hexagon - SPER16H (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• Brand: Gürkan
