BTC40ER25 - BTC40 ER25 DOUBLE CONTACT COLLET CHUCK

JIS B 6339 (MAS403 BTC) AD&B Balanced G2.5

FACE & TAPER CONTACT TOOLHOLDERS

BTC40 ER25 Collet Chuck

• Collet Type and Ø Clamping Rance: ER25  Ø1-20mm
• Coolant Type: AD&B
• Balance: G2.5

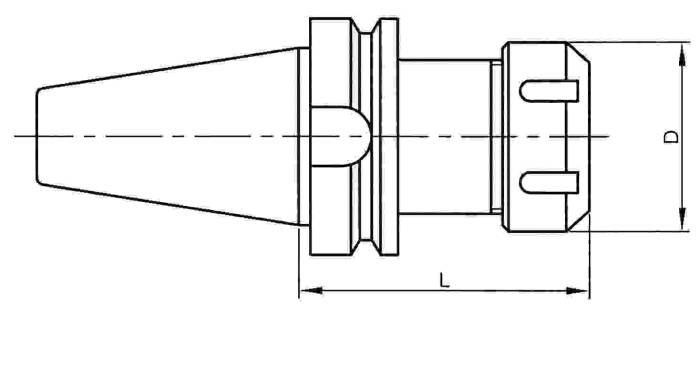

• D: 42mm
• L: 70mm
• Locknut Type and Code: ER25 Standart - NER25S
• Spanner Type and Code: SPER25 Standart - SPER25S (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• Brand: Gürkan

Go to Catalogue Page ;  (134 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
