BTC40ER40100 - BTC40 ER40-100 DOUBLE CONTACT COLLET CHUCK

JIS B 6339 (MAS403 BTC) AD&B Balanced G2.5

FACE & TAPER CONTACT TOOLHOLDERS

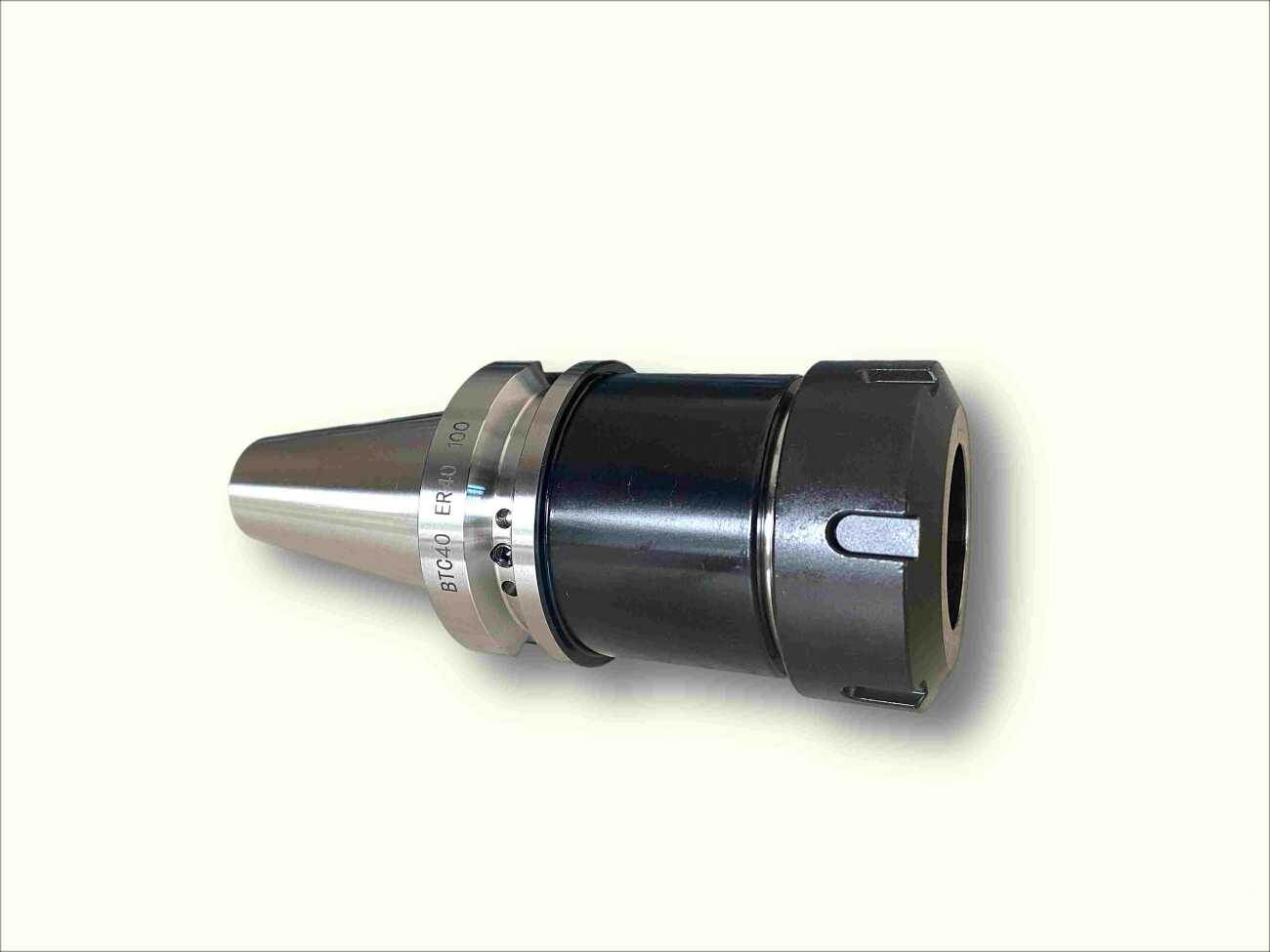

BTC40 ER40 100 Collet Chuck

• Collet Type and Ø Clamping Rance: ER40 100  Ø1-32mm
• Coolant Type: AD&B
• Balance: G2.5

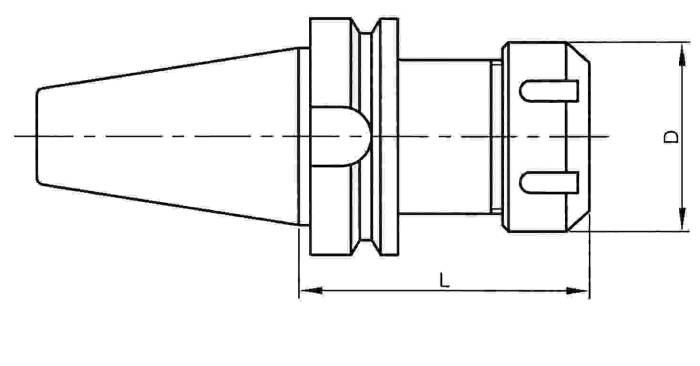

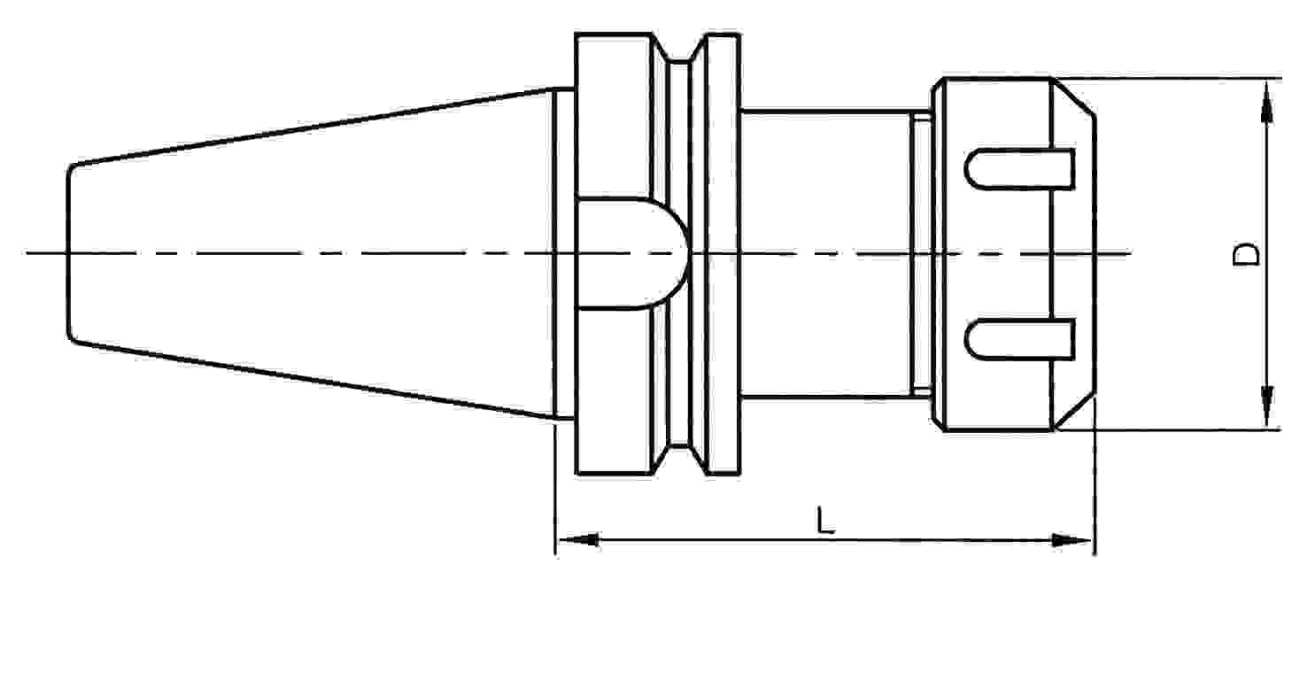

• D: 63mm
• L: 100mm
• Locknut Type and Code: ER40 Standart - NER40S
• Spanner Type and Code: SPER40 Standart - SPER40S (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• Brand: Gürkan

Go to Catalogue Page ;  (134 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
