BT40ER16130M- BT40 ER16-130 COLLET CHUCK

JIS B 6339 (MAS403 BT) AD&B Balanced G6.3

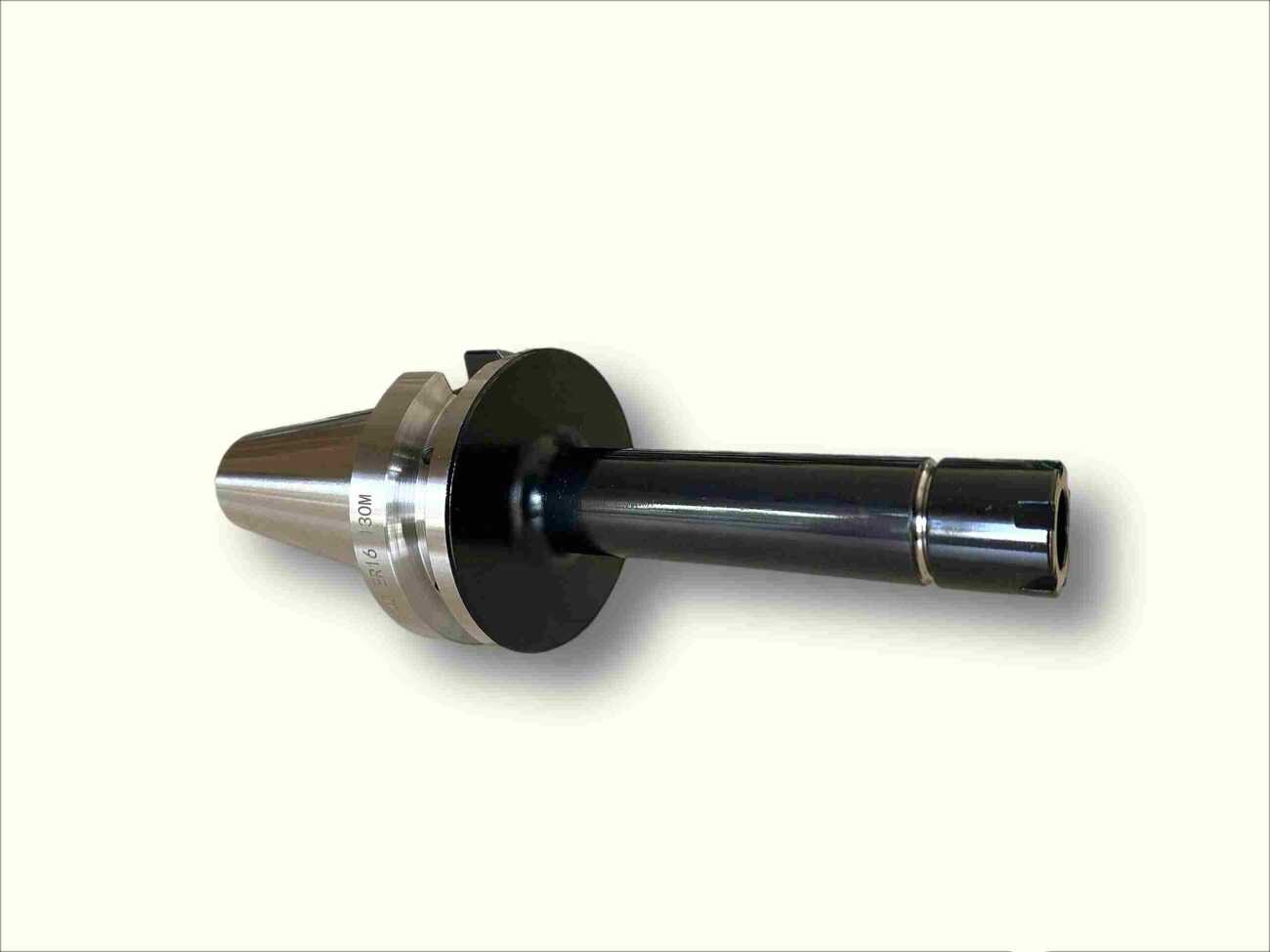

BT40 ER16 130 Collet Chuck

• Collet Type and Ø Clamping Rance: ER16 130  Ø1-12.5mm
• Coolant Type: AD&B
• Balance: G6.3

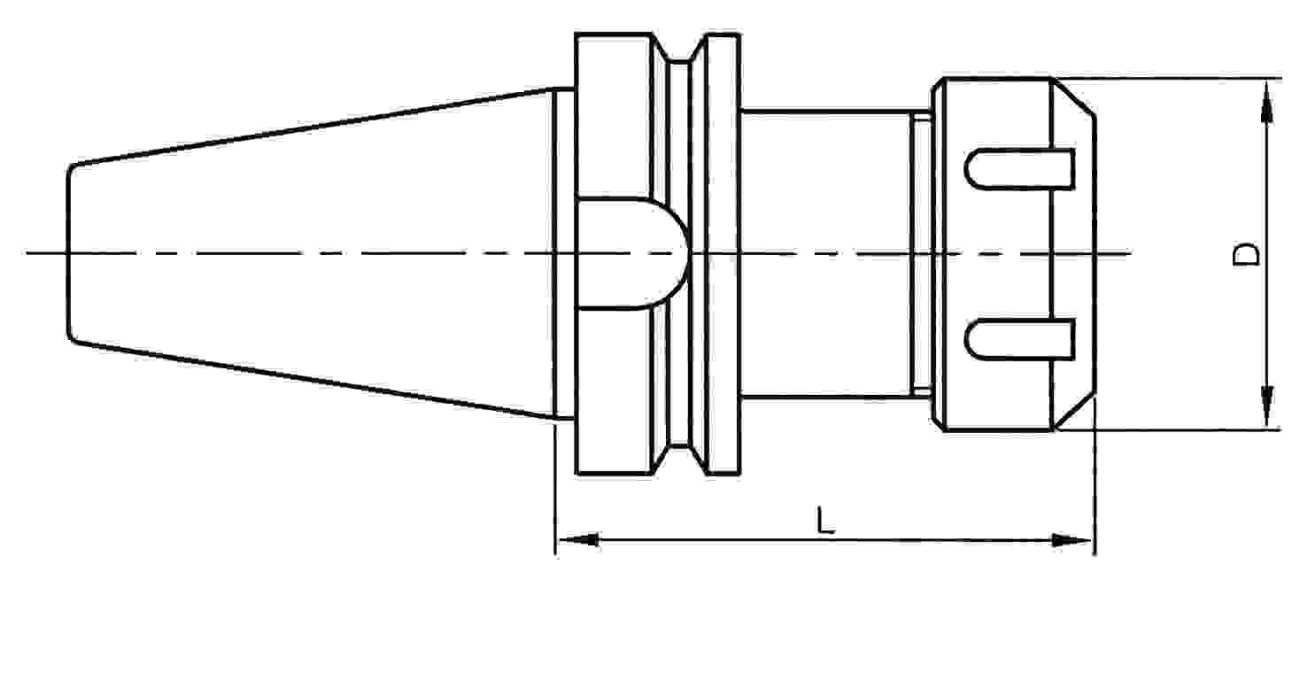

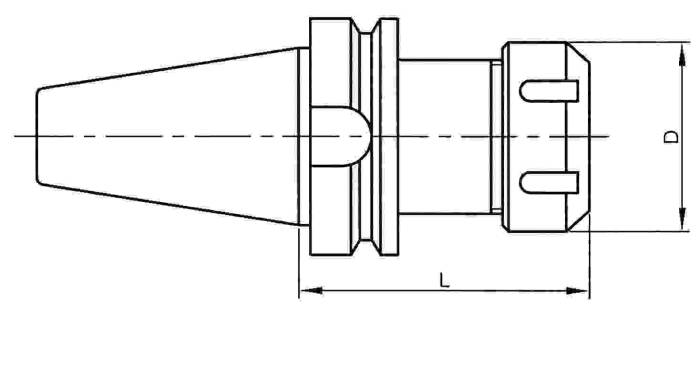

• D: 22mm
• L: 130mm
• Locknut Type and Code: ER16 Mini - NER16M
• Spanner Type and Code: SPER16 Mini - SPER16M (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
