BT40ER25 - BT40 ER25 COLLET CHUCK

JIS B 6339 (MAS403 BT) AD&B Balanced G6.3

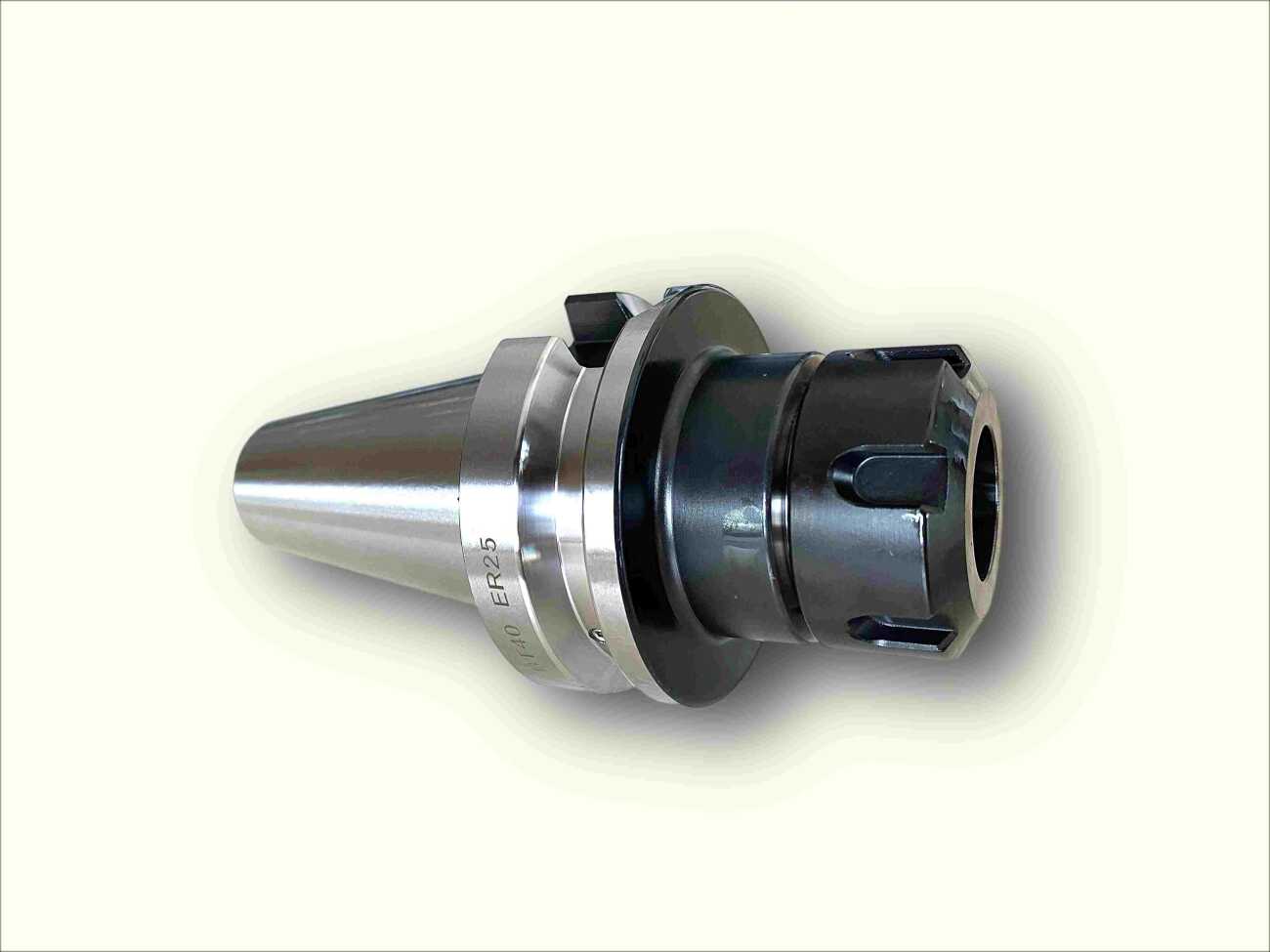

BT40 ER25 Collet Chuck

• Collet Type and Ø Clamping Rance: ER25  Ø1-20mm
• Coolant Type: AD&B
• Balance: G6.3

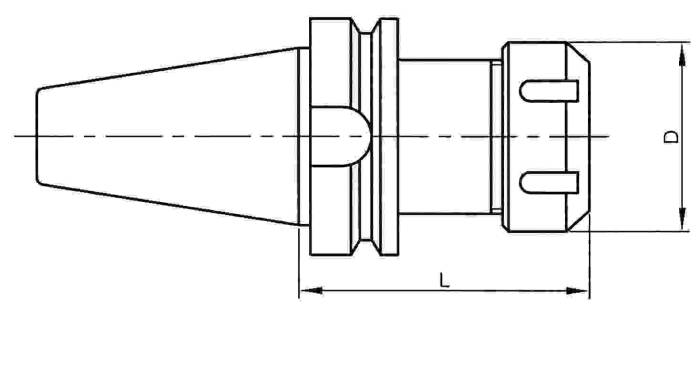

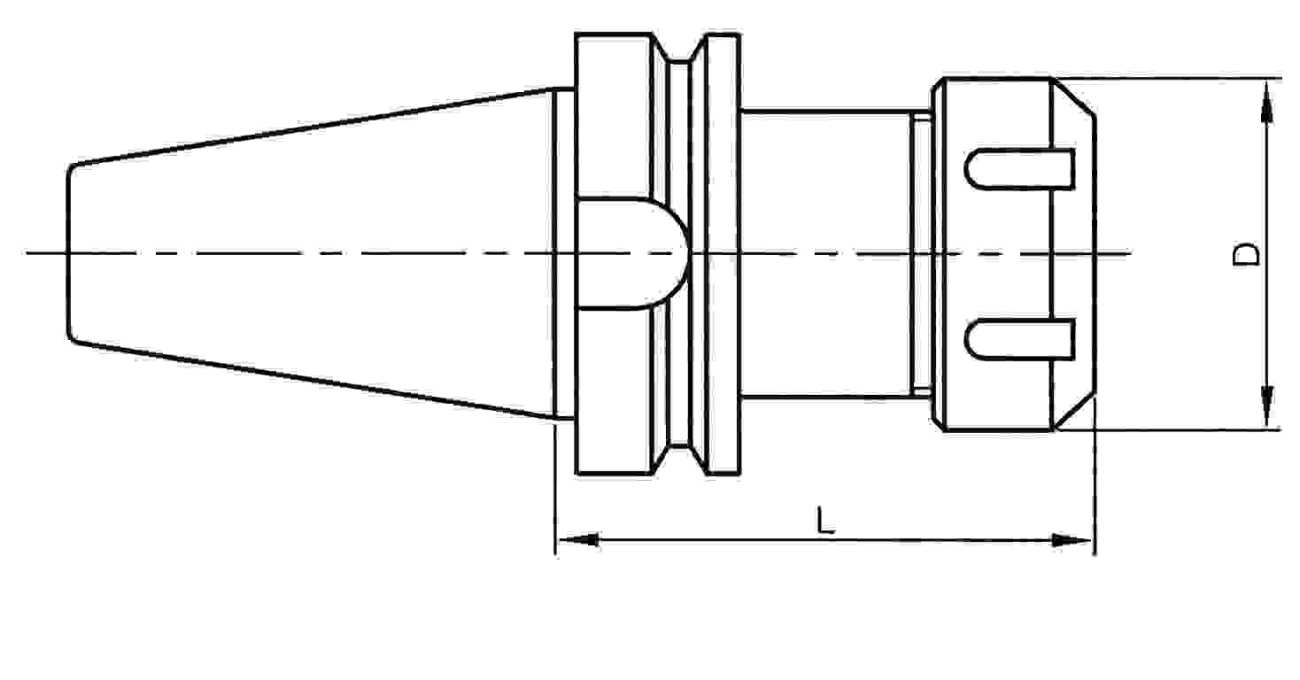

• D: 42mm
• L: 70mm
• Locknut Type and Code: ER25 Standart - NER25S
• Spanner Type and Code: SPER25 Standart - SPER25S (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
