BT40ER25100 - BT40 ER25-100 COLLET CHUCK

JIS B 6339 (MAS403 BT) AD&B Balanced G6.3

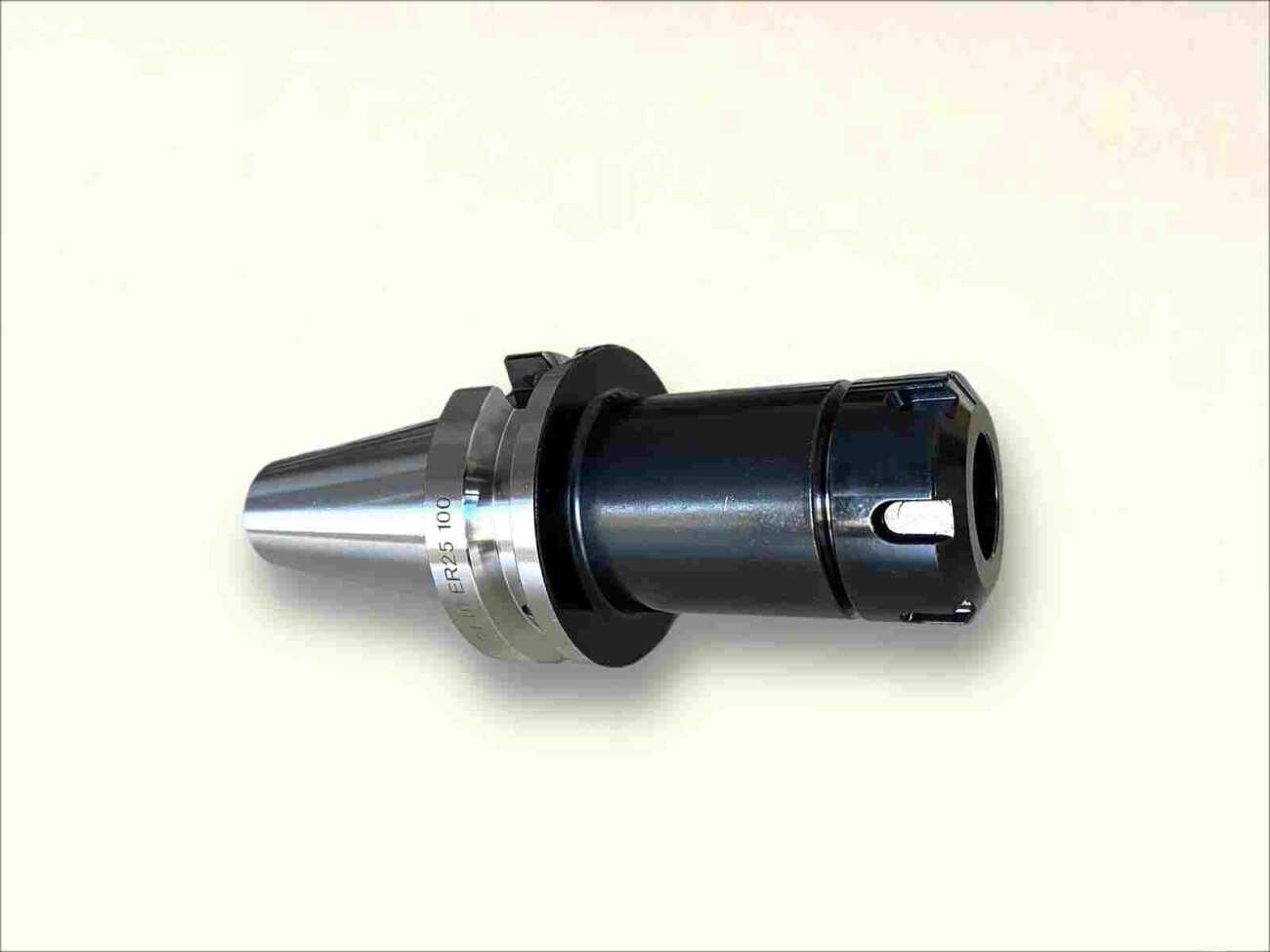

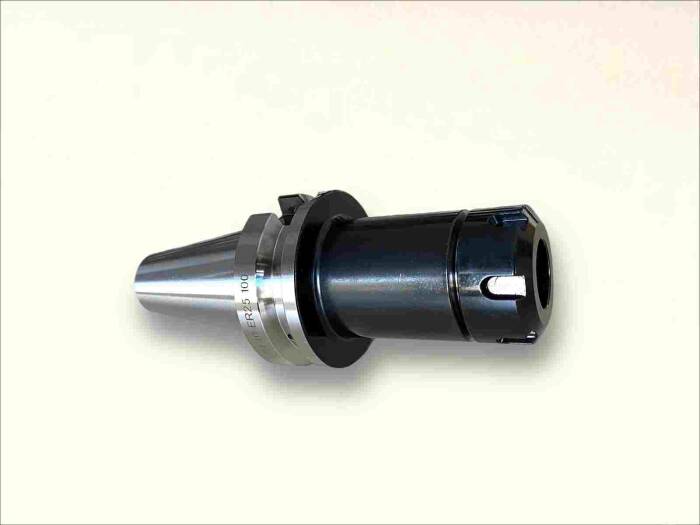

BT40 ER25 100 Collet Chuck

• Collet Type and Ø Clamping Rance: ER25 100  Ø1-20mm
• Coolant Type: AD&B
• Balance: G6.3

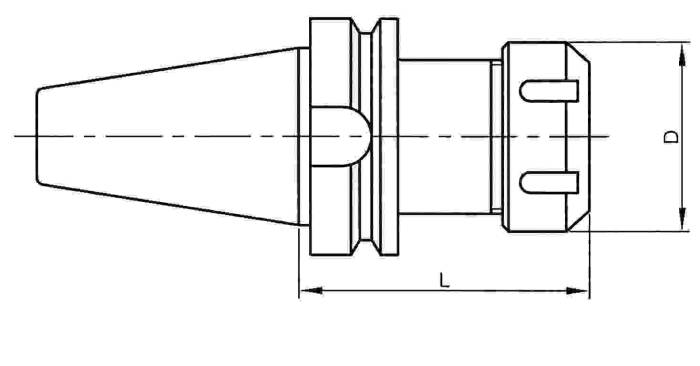

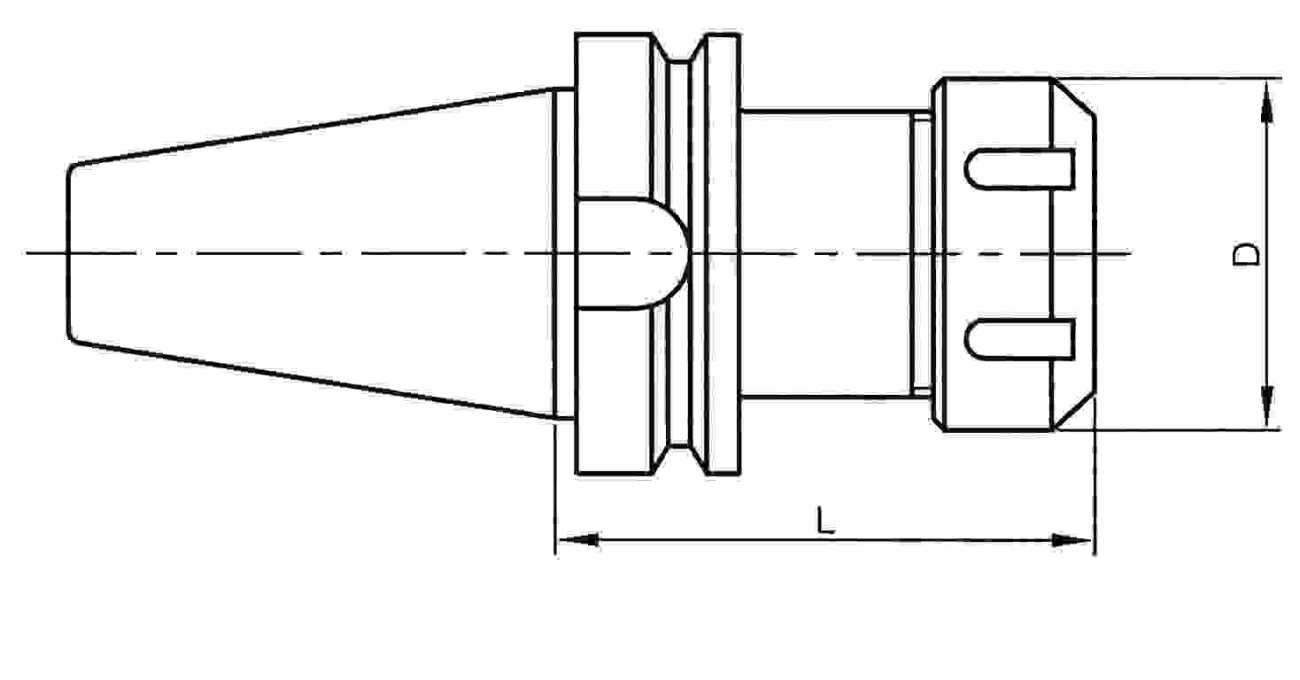

• D: 42mm
• L: 100mm
• Locknut Type and Code: ER25 Standart - NER25S
• Spanner Type and Code: SPER25 Standart - SPER25S (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan

Go to Catalogue Page ;   (107 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
